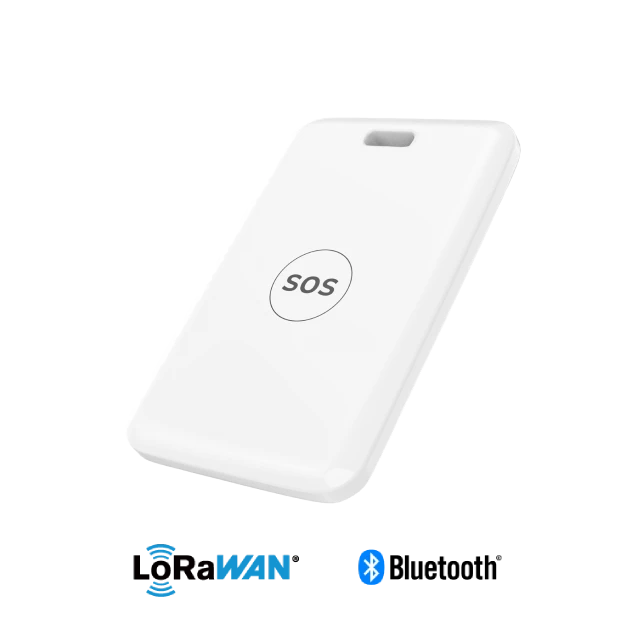

Personnel Positioning Badge
- Supports LoRaWAN protocol;
- Supports Bluetooth beacon positioning with an accuracy of 5 to 10 meters；
- Timed location uploads via LoRa；
- Built-in accelerometer for displacement monitoring；
- Built-in lithium battery, support magnetic charging；
- SOS Alarm
Description
| Items | Parameters | Performance Indicator |
| Sensors | Sensor Type | Built-in accelerometer sensor, Bluetooth chip |
| Positioning Accuracy | 5~10 meters | |
| Bluetooth TX Power | -4dBm | |
| Bluetooth Rx sensitivity | -96dBm | |
| LoRa | Data TX Rate | 300bps～5.4Kbps |
| Operating Frequency | CN470MHz～510MHz | |
| Max Tx power | 20dBm | |
| Rx Sensitivity | -141dBm（SF12） | |
| Working Environment | Operating Temperature | 0℃～50℃ |
| Operating Humidity | 10%～95% | |
| Power Supply | Battery Type | Lithium battery |
| Battery Spec. | 4.2V/900mAh（rechargeable） | |
| Others | Dimension | 87.4mm*55.2mm*8.7mm |
| IP Rate | IP65 |
