Moisture accumulation in buildings often goes unnoticed until it leads to expensive damage. Safeguard your property and finances with our automated sensors, which identify moisture issues at an early stage, enabling timely and cost-effective repairs.

10yr Battery life

Wireless Connection

IP67

Automatic alerts

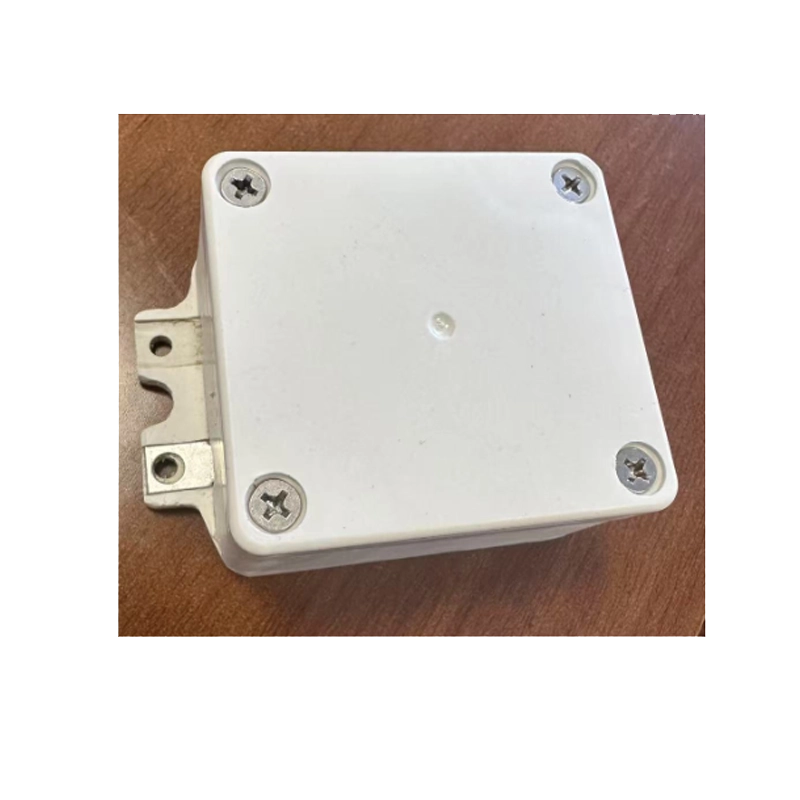

Wood Moisture Sensor

Measures Wood Moisture Content (WMC), relative humidity, and temperature.
Utilizes LoRaWAN for wireless connectivity.
Data visualization and analysis are available on an online platform.
Automatic alerts for anomalies or critical conditions.
Battery life of up to 10 years with 6 transmissions per day.
Capable of up to 24 measurements/transmissions per day.
Precisely calibrated for Douglas fir, Pine, Spruce, and other construction wood types.
Measures moisture depth up to 100mm, with the ability to focus on the interior of the timber.

Sensor Accuracy

Wood moisture content: ±0.3% accuracy within the 7% to 27% range.
Relative humidity: ±2% RH accuracy within the 10% to 90% range.
Measurements outside these ranges may have reduced accuracy.

Mechanical Enclosure

IP67.
Compact dimensions: 45 x 45 x 30mm.
Wires can extend measurement to hard-to-reach areas.
Includes screws for secure mounting and as measurement probes.

Connectivity

Uses the widely supported LoRa protocol with expanding coverage.
Long-range communication with minimal power consumption.
Gateways provide coverage within a radius of up to 500 meters.

Moisture monitoring in all stages

Our moisture monitoring solutions are crafted to assist you at every phase of a building's lifespan—ensuring structural protection is straightforward and effective. From initial construction to ongoing maintenance, we provide reliable, real-time insights to help you make informed and confident decisions.

Ensuring the quality of raw materials

Our solutions enable you to monitor moisture levels in timber and other sensitive materials starting from the moment they leave the manufacturer. This ensures your team can trust that materials arrive in optimal condition, ready for use, and helps prevent expensive damage caused by moisture issues.

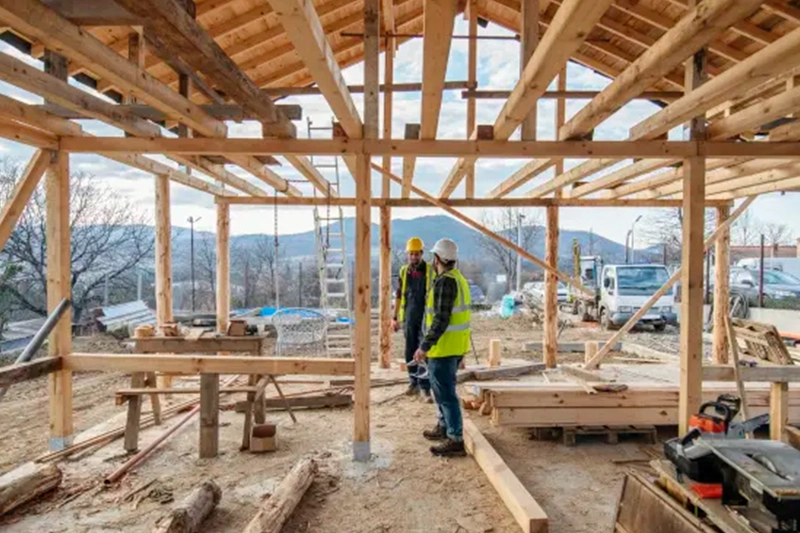

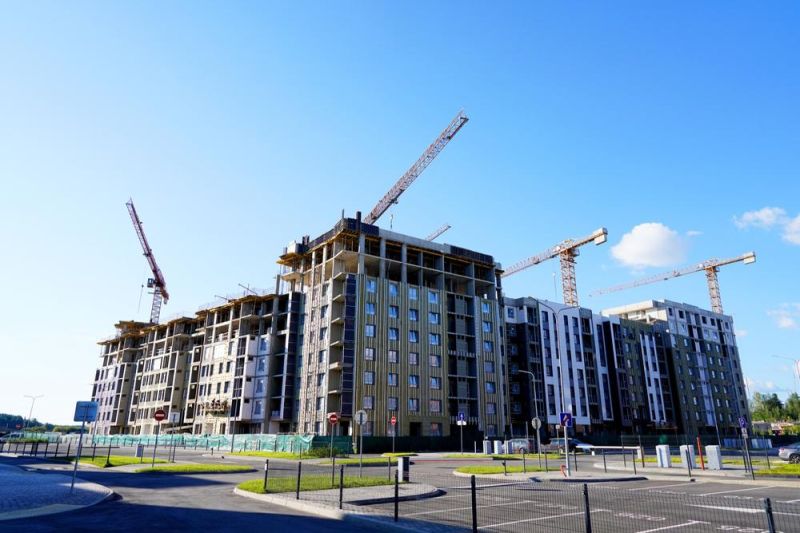

Real-time moisture management during construction

Our moisture monitoring system is an essential tool during the construction phase. Instant alerts allow your team to respond quickly if moisture is detected in areas where it shouldn’t be, helping to avoid delays and ensuring a seamless handover process.

Streamlined Long-Term Maintenance

Even after construction is complete, our system continues to provide value by simplifying maintenance and monitoring. With remote access to real-time moisture data, your team can track conditions from anywhere with an internet connection. This allows for swift responses to potential issues.

Reporting

Your Buildings and Sensors in One Intuitive Overview

With Malaseeds, effortlessly switch between a high-level view of all your buildings and sensors or dive into detailed data using intuitive visualizations. Sensors are mapped onto your building’s blueprints, making it easy to pinpoint and address issues quickly.

All Your Moisture-Related Data in One Place

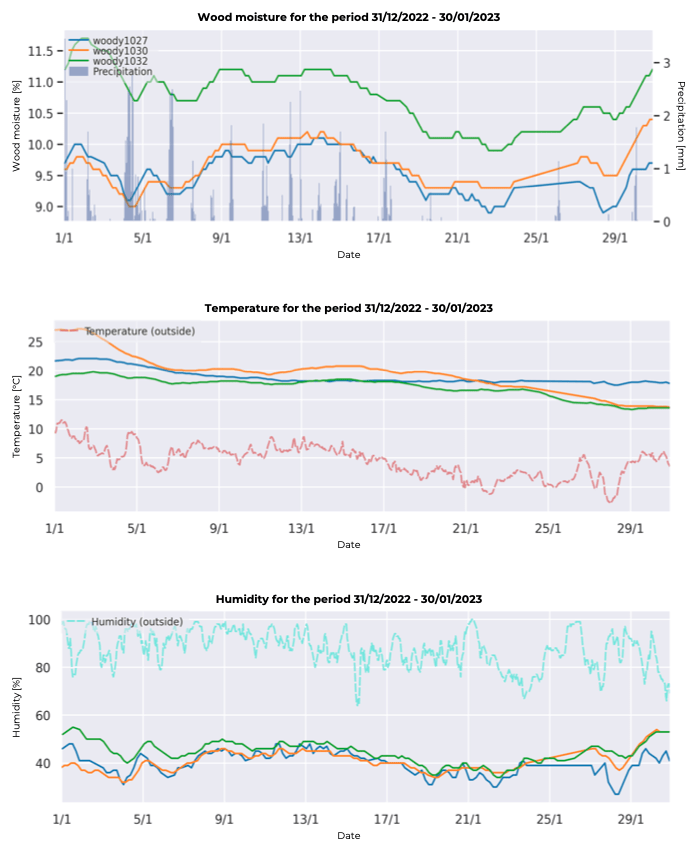

Access moisture, humidity, temperature, and even local weather conditions from nearby weather stations—all are all consolidated in a single platform.

Make Data-Driven Decisions with Ease

Stop wasting hours analyzing scattered data sets. Our platform simplifies decision-making by presenting all the information you need in a clear, actionable format

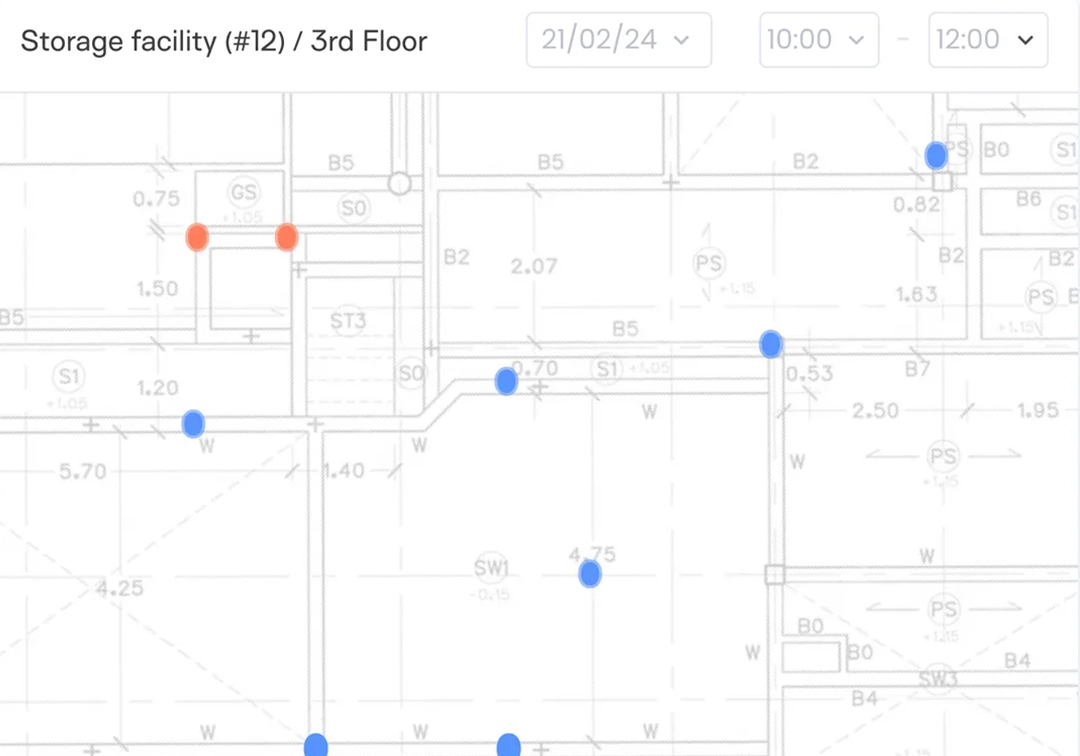

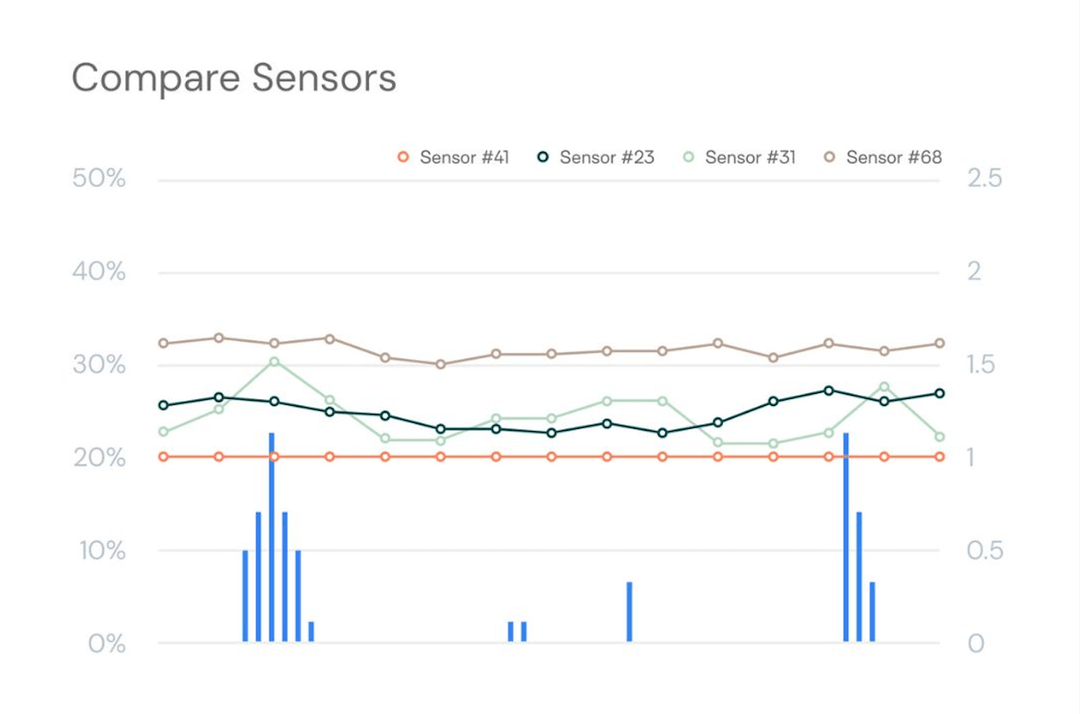

Identify Issues on Blueprints or Timelines

Locate problems directly on your building’s blueprint for fast and accurate repairs. Alternatively, view data on a user-friendly timeline to track when issues occur, improving accountability and understanding.

Share Moisture Reports Effortlessly

Creating reports and graphs from raw data in Excel is nobody’s idea of fun. With Malaseeds, generate comprehensive moisture reports—complete with blueprints and sensor placement images—at, at the click of a button.

Frequently Asked Question

Can I monitor mold with the Malaseeds platform?

Yes, the Malaseeds platform includes integrated mold curves, which are based on a mathematical model derived from extensive research in the field. These curves help visualize the environment around each sensor and assess the risk of mold growth.

Can data be integrated into our own systems?

Absolutely! Malaseeds offers an open API, allowing you to easily pull data into your own systems for seamless integration.

Do you provide onboarding for the system?

Yes, we offer tailored onboarding to ensure you get the most out of our platform. Our team will work with you to provide the necessary training and support based on your specific needs. Contact us to discuss how we can customize the onboarding process for you.

How resistant and precise are the moisture sensors?

They are highly moisture-resistant due to PCB protection, with accuracy in:

Wood moisture content: ±0.3% (8-20% range)
Relative humidity: ±2% RH (10-90% range)
Temperature: ±0.2°C (-20 to 60°C range)
Measurements outside these ranges might have slightly reduced accuracy.

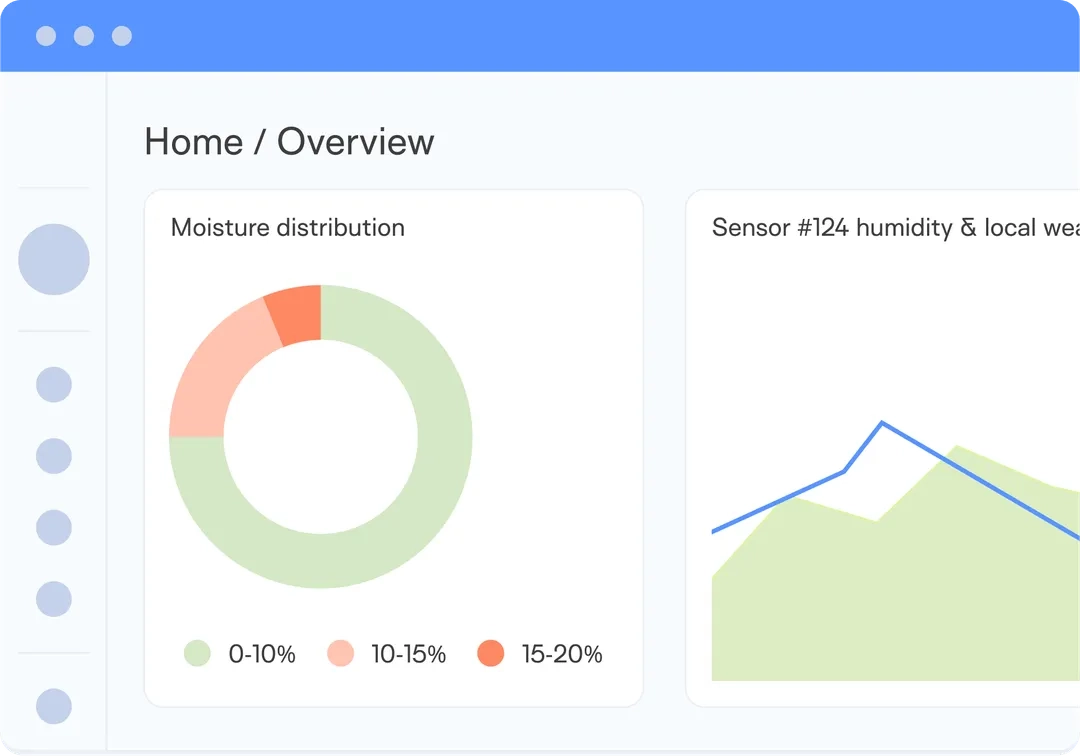

What data is available in the dashboard?

The dashboard displays temperature, humidity, moisture levels, electrical resistance, signal strength parameters, and gateway details. You can also download raw data in CSV or Excel format for further analysis.

What type of connectivity do the sensors use, and can they be installed in hard-to-reach areas?

They use the LoRa protocol for long-range, low-power communication. Sensors can be extended with wires for difficult installations. Setup involves plugging in the gateway, screwing the sensor in place, and scanning its QR code for registration.

How big is the moisture sensor, and what's the difference between a moisture logger and a sensor?

The sensor is compact and discreet. Unlike loggers, which store data locally requiring manual retrieval, sensors transmit data to the cloud in real-time for instant access via a dashboard.
